330B

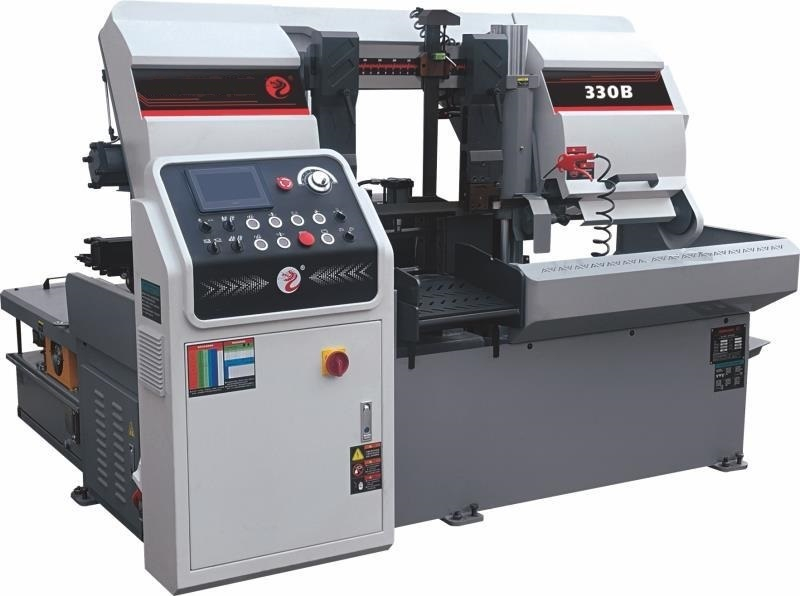

Item Name: CNC Saw Model NO.:330B
[Mechanic Brief Description]
This machine is an equipment for cutting metal material with a bimetallic saw blade.It has the advantage of compact structure, fast sawing, high precision, narrow saw gap, low noise and convenient operation. It is a new energy-sawing product which replaces circular saws and bow saws.
[Key Technical Parameters]
CNC Saw | Model:330B | ||||||
Max Cutting Capacity | Round | 330mm | Bundle cutting | 300*150mm | |||
Quadrate | 330×330mm | ||||||
Saw blade | Speed:20-80 m/min | Size:34×1.1×4115mm | Tension:Hydraulic | ||||
Guides:Carbide and bearing blade guides | Cleaning:Wire brush & flood coolant | ||||||
Motor output | Blade: 4.0kw | Hydraulic:0.75kw | Coolant: 0.09kw | ||||
Longest single feeding: 500mm | Work Vice: Hydraulic | ||||||
Height of working table: 635mm | Hydraulic tank volume: 60L | ||||||
Cooling box volume: 50L | Perpendicularity of section:0.2/100mm | ||||||
Feeding precision:±0.2mm | Machine Size(L×W×H):2220x2350x1500 mm | ||||||
Standard Configuration:1. Power blade cleaning brush;.2. Working light; 3. Roller rack 1M long; 4. One piece of bi-metal saw blade; 5. One set of tools with tool box; 6.NC control;7. Hydraulic balde tension; 8. Automatic chip conveyor; 9. Inverter. Optional Parts: 1. 2M roller table | |||||||
[Range of application] This machine is widely used in the electro-mechanical, metallurgical , automotive, bridge, shipbuilding and other industries.
