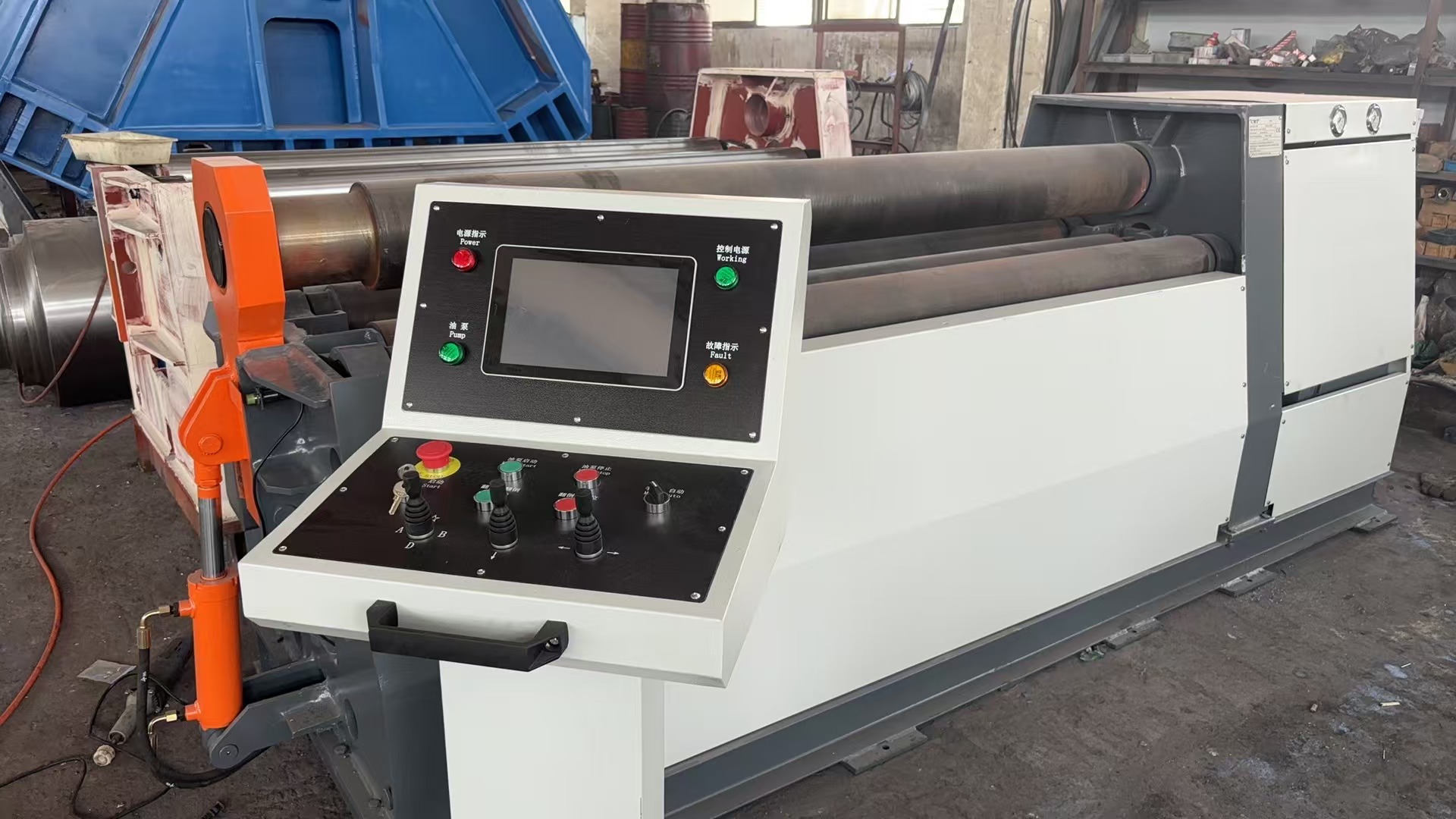

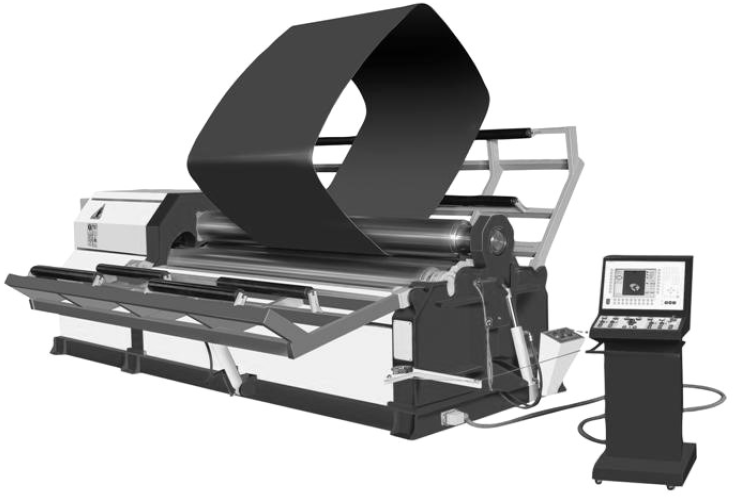

Item Name: CNC 4-Axis Calender Model NO.:W12- 4x3000
Key Technical Parameters:
Model | W12- 4x3000 |
Max steel plate width | 3000mm |
Roller working length | 3100mm |
Max steel plate thickness | 4mm(σs≤245MPa) |
Initial line length under full load | ≤2*T mm |
Capacity (σs≤245MPa) | T4* B3000* Ø Min 500mm |
Diameter of superior roller | 160mm |
Diameter of inferior roller | 140mm |
Diameter of lateral roller | 120mm |
Bending speed | Pre-bending: 2m/min; Bending: 5m/min; |
Equipment Size | 5400 ×1600 × 1800mm |
Support Central: 2600*600*2000 | Support Lateral:3200*1200*650 |
Power requirement | 380V,60Hz, 5.5KW |
Host Weight | 5.3Ton |
Item Name: CNC 4-Axis Calender Model NO.:W12- 4x3000
Key Technical Parameters:
Model | W12- 4x3000 |
Max steel plate width | 3000mm |
Roller working length | 3100mm |
Max steel plate thickness | 4mm(σs≤245MPa) |
Initial line length under full load | ≤2*T mm |
Capacity (σs≤245MPa) | T4* B3000* Ø Min 500mm |
Diameter of superior roller | 160mm |
Diameter of inferior roller | 140mm |
Diameter of lateral roller | 120mm |
Bending speed | Pre-bending: 2m/min; Bending: 5m/min; |
Equipment Size | 5400 ×1600 × 1800mm |
Support Central: 2600*600*2000 | Support Lateral:3200*1200*650 |
Power requirement | 380V,60Hz, 5.5KW |
Host Weight | 5.3Ton |
