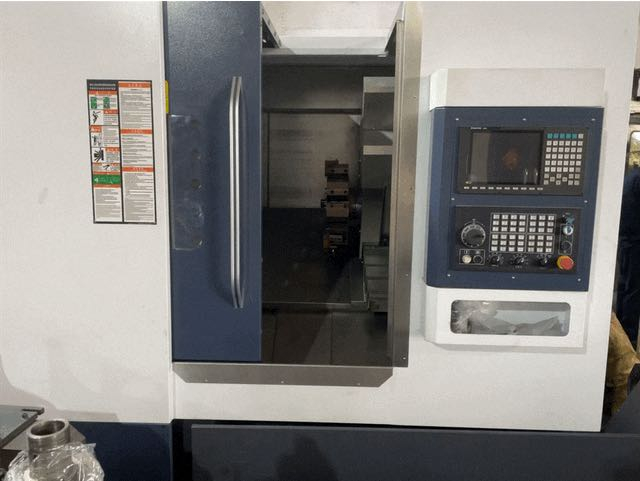

Item Name: CNC Lathe with slant bed Model: CK32L/CK40L/CK50L
Equipment’s Features & Function:
l The linear non-friction guideways used on the machine are of high precision.
l The machine bed is of integral structure and is inclined at an angle of 45o, thus having good rigidity
l The spindle is supported by the imported high-speed and high-precision bearings.
l The machine can be equipped with a motor-driven turret or a hydraulic turret.
l CNC System FANUC / SIEMENS / GSK980TC3 for the user’s option;
Key Technical Parameters:
Model | CK32L | CK40L | CK50L | ||||||
Capacity | Max.swing over bed | Φ320mm | Φ400mm | Φ540mm | |||||
Max.swing over carriage | Φ180mm | Φ260mm | Φ300mm | ||||||
Max.cutting length | 450mm | 500/750mm | 750mm/1000mm | ||||||
Width of rail | 284mm | 320mm | 381mm | ||||||
主轴 Spindle | Spindle nose | A2-5 | A2-6 | A2-8 | |||||
Spindle bore | 56mm | 62mm | 90mm | ||||||
Taper of spindle bore | 1:20:00 | 100mm/1:20 | 95.75mm/1:20 | ||||||
Range of spindle speed | 150-4200rpm | 100-3500rpm | 100-2000rpm | ||||||
Chuck | 6“ | 8“ | 10" | ||||||
进给 Feeds | X axis travel | 190mm | 230mm | 280mm | |||||
Z axis travel | 450/650mm | 500/750mm | 750mm/1000mm | ||||||
X/Z Rapid speed | 18/20/min | ||||||||
刀架 Turret | Type of turret | Electrical / Hydraulic | Electrical | Electrical / Hydraulic | |||||
Numbers of tool position | 8 or 12 | ||||||||
Section of tool(Max) | 25x25mm | 25x25mm | 20x20mm | ||||||
尾座 Tailstock | Type of tailstock | 液压 Hydraulic | |||||||
Max. travel of tailstock sleeve | 120mm | 80mm | 80mm | ||||||
Diameter of tailstock sleeve | 90mm | 90mm | 80mm | ||||||
Taper of tailstock sleeve | MT5 | MT5 | Φ60mm/MT4 | ||||||
电机 Motor | Type of main motor | Servo motor | |||||||
Power of main motor | 11kw | 7.5kw | 5.5kw | ||||||
Power of pump | 370W | 370W | |||||||
包装及其他 Packing &others | Packing size | 2500×1750×2000mm | 2830×1750×2150mm | 3130×1750×2150mm | |||||
Packing size with Automatic Scrapes removal machine | 4205x2100x2200 | ||||||||
N.W/G.W | 2200/2600 | 2700/3100 | 3000/3400 | ||||||
Standard Configuration | GSK980TC3 CNC System / GSK Drive and feed motor / Spindle from China mainland / 11KW GSK Servo motor / 10" Hydraulic Chuck / Hydraulic tailstock / Electrical Turret / Guidrail & screw rod from Taiwan / Working light / Automatic lubricant & cooling system / Tool & Tip | ||||||||
