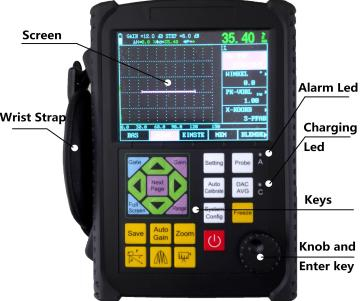

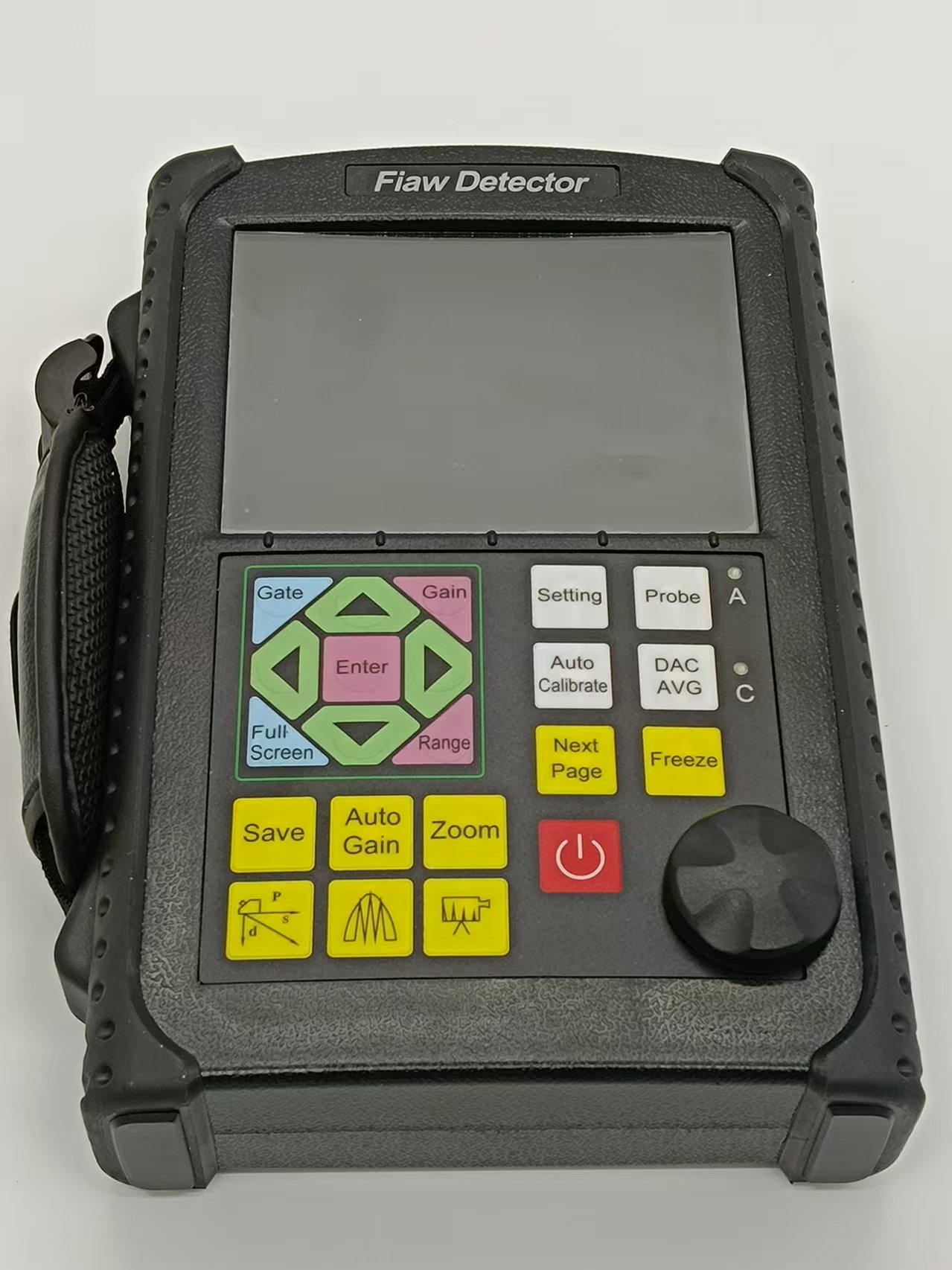

Ultrasonic Flaw Detector

Automated calibration、Automated gain

★  DAC、AVG、TCG、B scan、AWS

★  High-speed capture and very low noise

★  Solid metal housing

★  high contrast viewing of the waveform from bright

★  Powerful pc software and reports can be export to excel

Features

· Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)；

· Automated switch three staff gauge ((Depth d、level  p、distance s)；

· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；

· Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated

· 6dB DAC functions;

· 500 independence setup, any criterion can be input freely, we can work in the scene without test block；

· Big memory of 1000 A graph

· Automated gain and gain scan;

· Peak Hold and Peak Memory；

· B scan;

· AWS D1.1

· Automated make video of test process and play; use upan，the length of video is unlimited.

· Powerful pc software and reports can be export to excel;

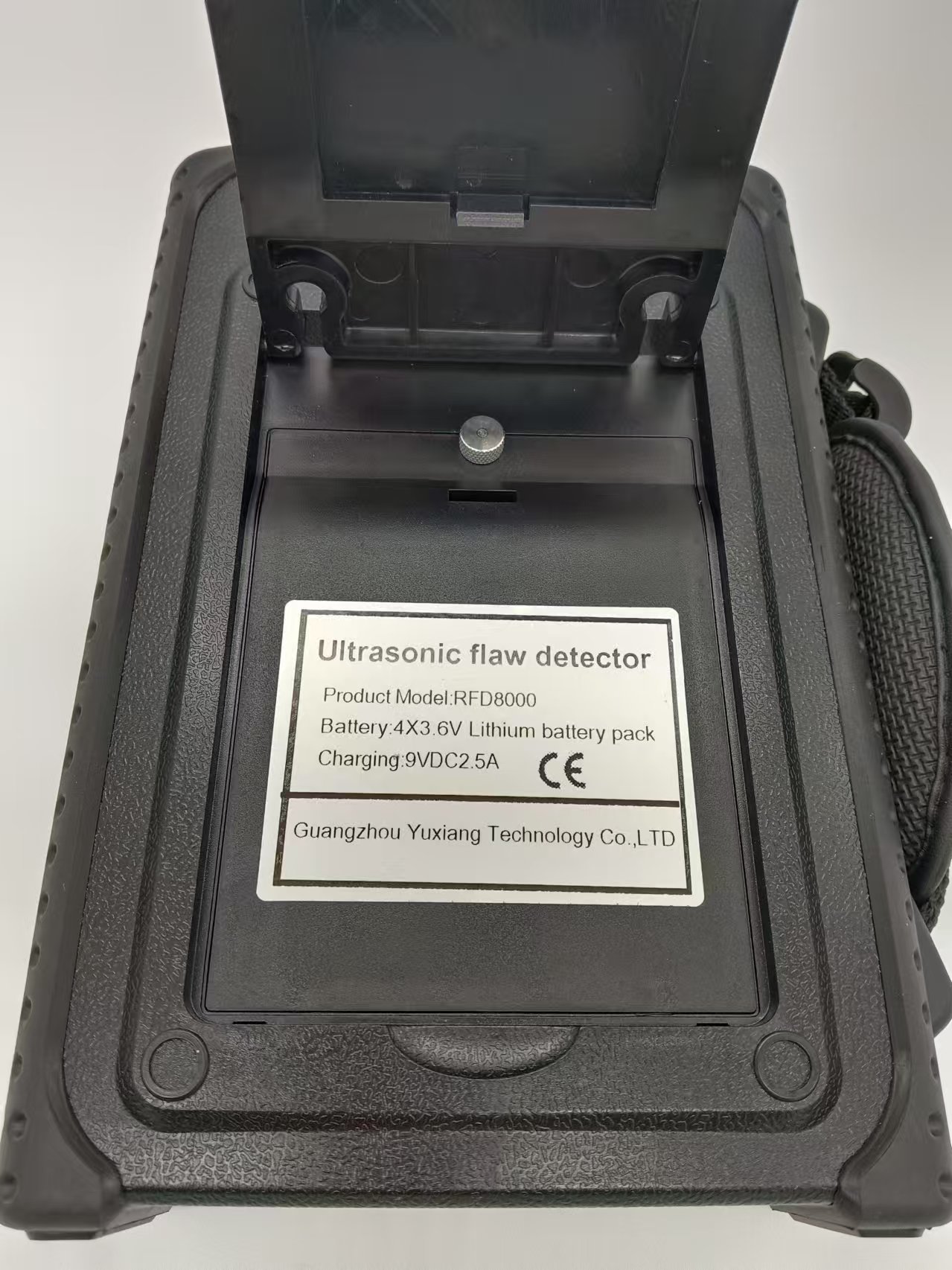

· Li battery, continue working time up to 10 hours;

· The embeded software can be online updated；

Other assistant function

· Display freeze;

· Automated echo degree;

· Angles and K-value;

· Lock and unlock function of system parameters;

· Electronic clock calendar ;

· Two gates setting and alarm indication;

· Gate and DAC alarm;

Specifications
