4.Ring-die Manufacture from China Scheme-- CNC Drilling Machine

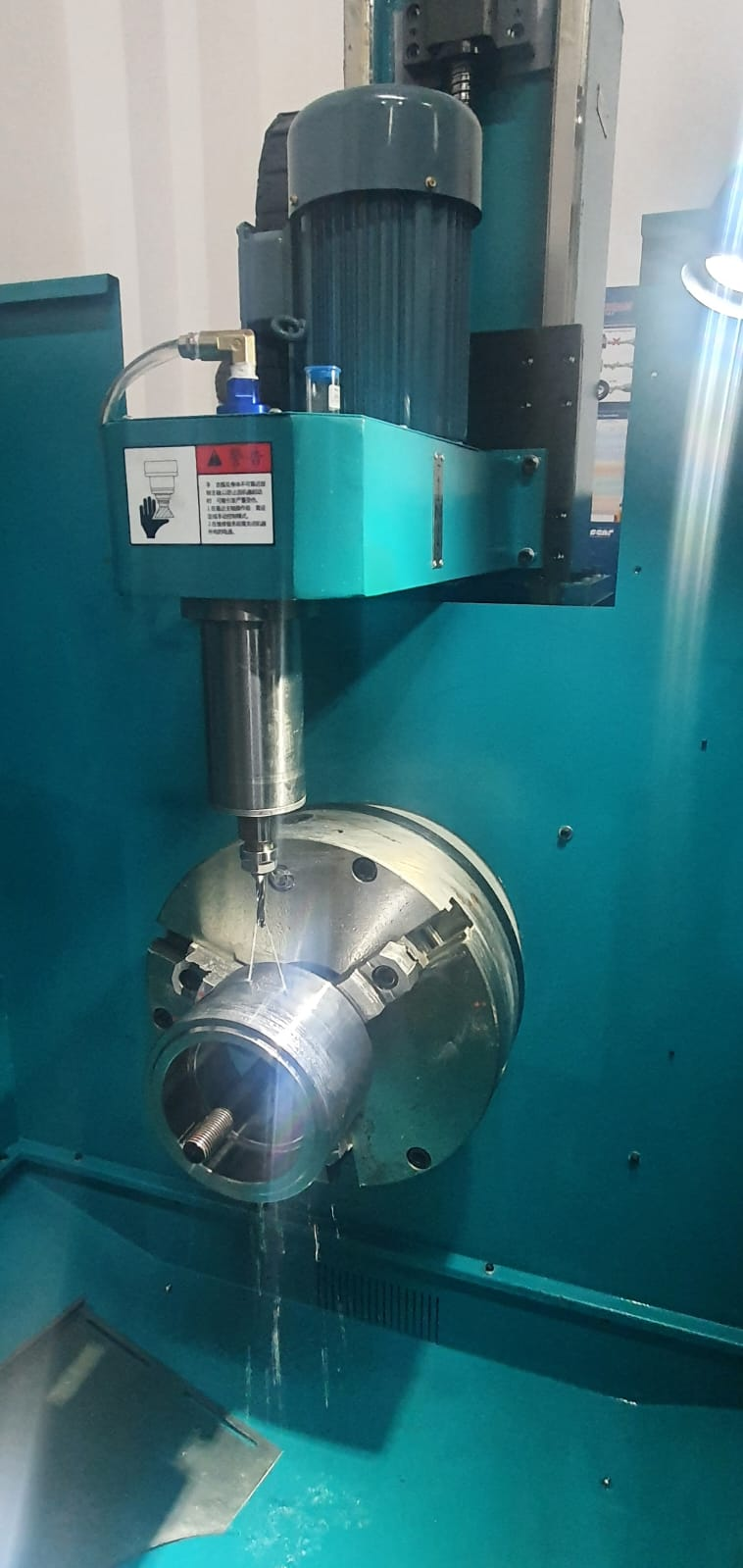

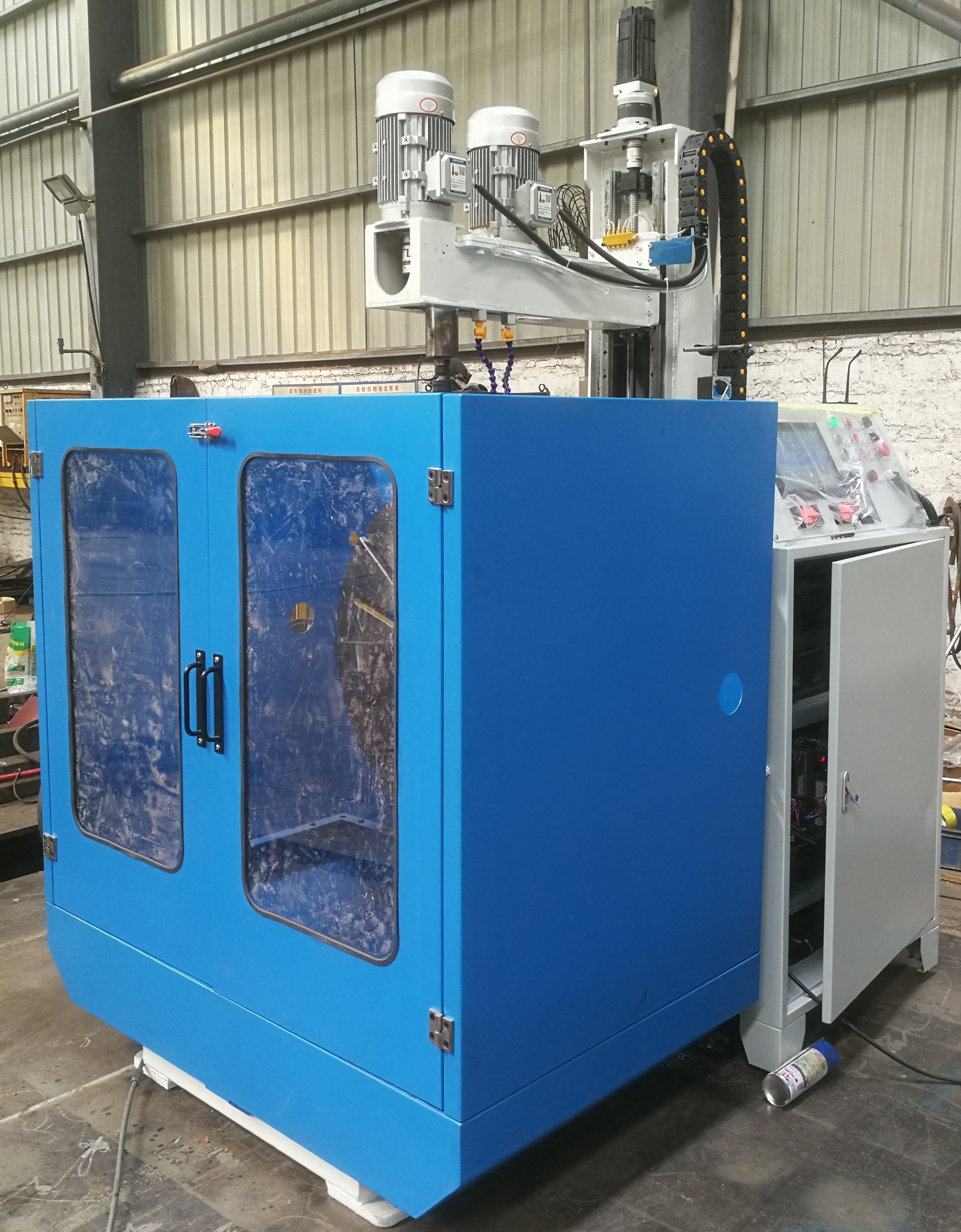

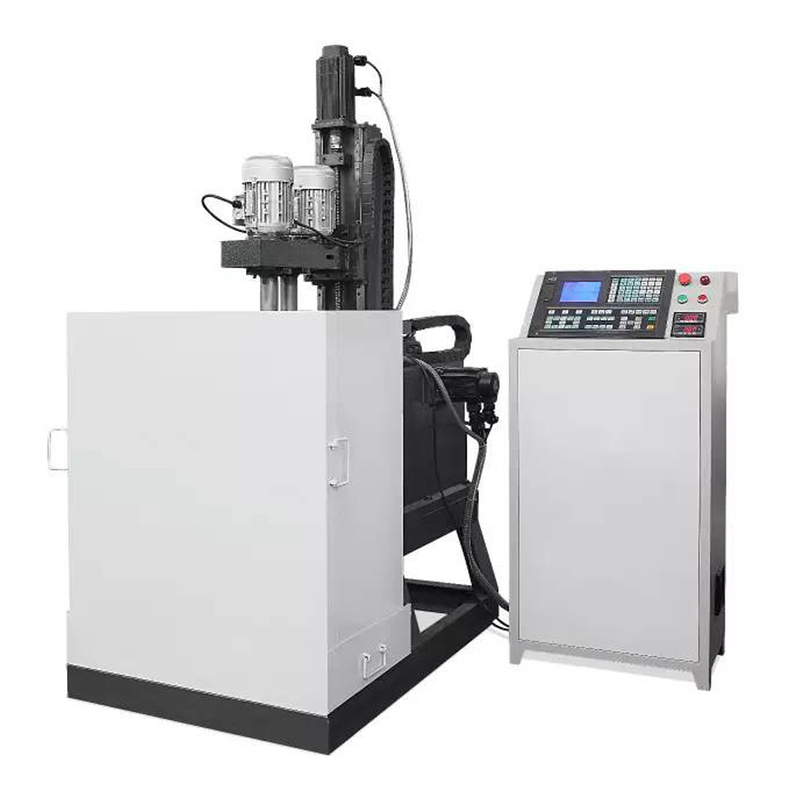

Item Name: Full-automatic CNC Drilling Machine for Ring-die & Roller Shells
[Mechanic Brief Description]
This full-automatic CNC drilling machine for ring-die and roller shells is specially designed for fine machining for ring die and roller shells with such advantages as Low investment cost/High Efficiency/Good drilling Quality/Stable Function etc; The electric control system consists of high sensitive CNC system with variable frequency control & servo motor. The motion system consists of screw rod(ball-spindle)& rail with high precision.
Equipment’s Features & Function:
l Hole number can be arbitrarily set as per your requirement, Equal hole spacing, Positioning accuracy up to 0.001mm.
l Full automatic processing, free processing speed adjustment (the falling speed / rotate speed of drill chuck and indexing speed of universal indexing plate). unique cutting craft. Greatly reduce the tool wearing speed and extend the life time.
l Release hole depth of different row can be set at once, Automatic detection in processing.
l Drilling bit torque upper and lower limit setting avoid the drilling bit breaking. the wear on drilling bit can be monitored at any time thus it can effectively prevent the drill-bit breaking unexpectedly.
l The falling depth of drill chuck can be set at will; the semi-finished holes can be conveniently improved by hand.
l Pause / Start at any time, Directly start drilling after tool replacement, no need to align hole.
l Memory function when power –off.
l One man can operate several machines, double working efficiency.
l Easy Operation, user can learn how to operate in 5 minutes. Hole diameter input complete in one minute.
Key Technical Parameters:
Model | HMZK - 900 | HMZK - 1150 | YLZK-500 |
Horizontal Stroke | 400mm | 450mm | 400mm |
Z axis stroke | 300mm | 320mm | 200mm |
Drilling Diameter | φ2.0～φ5.0 or φ6.0～φ16.0 | φ2.0～φ5.0 or φ6.0～φ16.0 | ≤φ10 |
Ring Die Diameter | 350mm (min ID), 900mm (Max OD) | 400mm (min ID), 1150mm (Max OD) | 120mm (min ID), 650mm (Max OD) |
Ring Die Width | ≤500mm | ≤500mm | Roller shell Width ≤300mm |
Positioning accuracy | 0.02mm | 0.02mm | 0.02mm |
Spindle Speed | 0-3000rpm | 0-3000rpm | 0-3000rpm |
Fast Moving speed | X axis: 12000; Z axis: 10000mm/min | ||
Spindle power | Taiwan Dongli brand, 1.5KW-4P | 2.2KW-4P | Taiwan Dongli brand, 1.5KW-4P |
System language | Chinese / English | Chinese / English | Chinese / English |
Equipment Size | 1873 × 1194 × 2120mm | 1873 × 1194 × 2420mm | 1770× 920× 2340mm |
NC Control System | from www.leisai.com | from www.leisai.com | from www.leisai.com |
Weight | 1200KG | 1375KG | 1000KG |
Power requirement | 220 / 380V, 50/60Hz | 220 / 380V,50/60Hz | 220 / 380V, 50/60Hz |
No | Main components specification | ||
1 | Taiwan Lead Screw | 2pcs | Precision grade |
2 | Taiwan Linear guide rail | 4sets | Precision grade |
3 | CNC Control System www.maxsine.com | 1set | Including 3 sets of servo drive & motor |
4 | Electric cabinet | 1 set | Schneider components |
5 | Pendant Hand-held controllers | 1 set | Convenient for drilling control |
6 | Universal indexing rotary plate | 1pc | Suit for all the die size below the diameter limit |
7 | Cooling tank | 1 set | Water pump, lubricator |
8 | Total power | 3KW | |
Remarks: 1) No Programming required the machine has easy type of operation function, Directly input drilling parameter. 2)Client factory power requirement (customized) | |||
Attached spare tools with machine | |||
Item | Tools | Size | QTY |
1 | Open wrench 1 | 24 ~ 27 | 1 PC |
2 | Open wrench 2 | 30 ~ 32 | 1 PC |
3 | Hex Key 1 | 6mm | 1 PC |
4 | Hex Key 2 | 12mm | 1 PC |
5 | ER20 Collect chuck | 4 ~ 12 | 1 set |
6 | Anchor screw | M16*40 | 4 PCS |

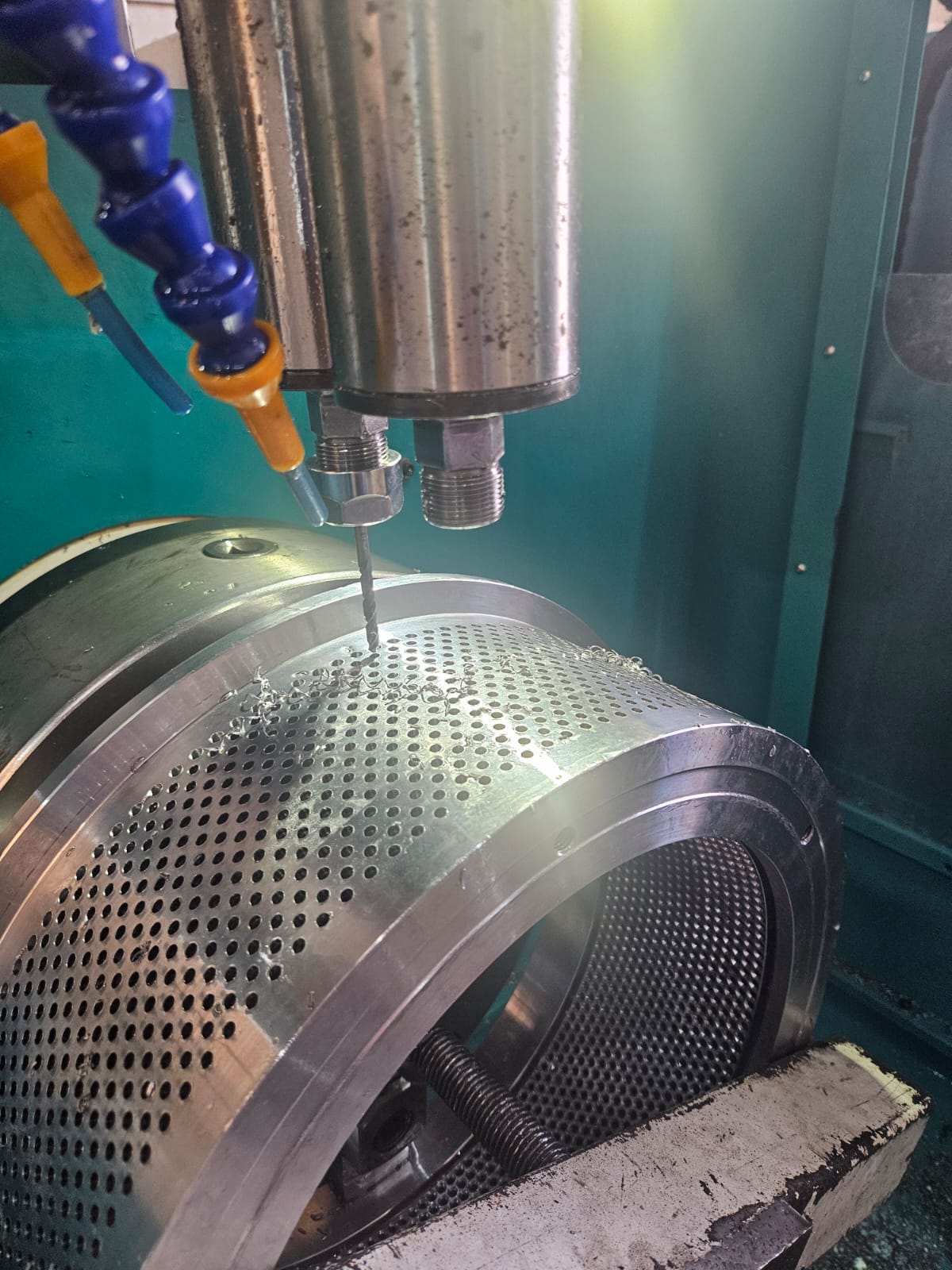

Range of application: This machine is used for drilling to all kinds of holes on the ring die and roller shells.
About the working videos, please refer to https://www.youtube.com/dashboard?o=U & https://www.facebook.com/CNC-Drilling-machine-for-ring-die-474349959428514
