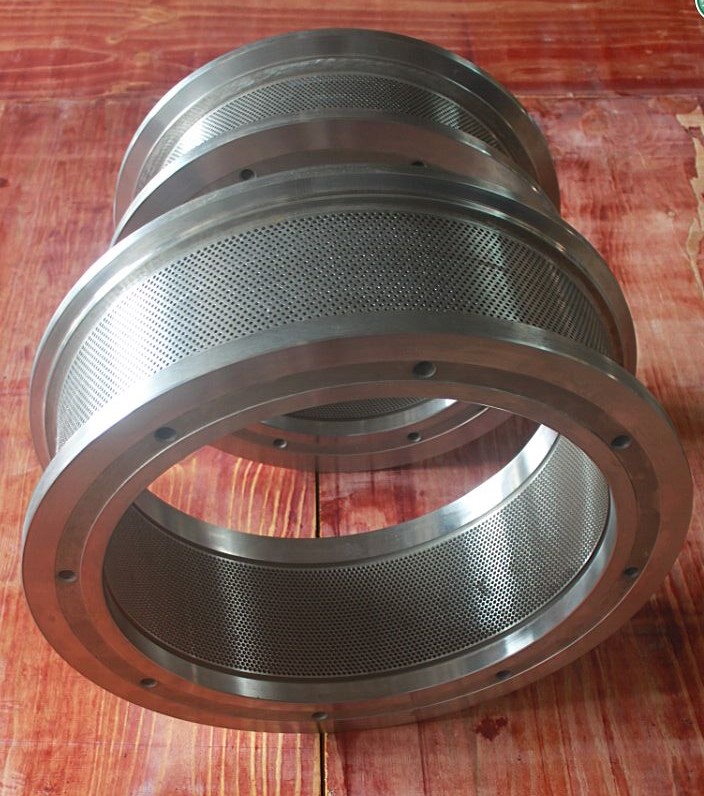

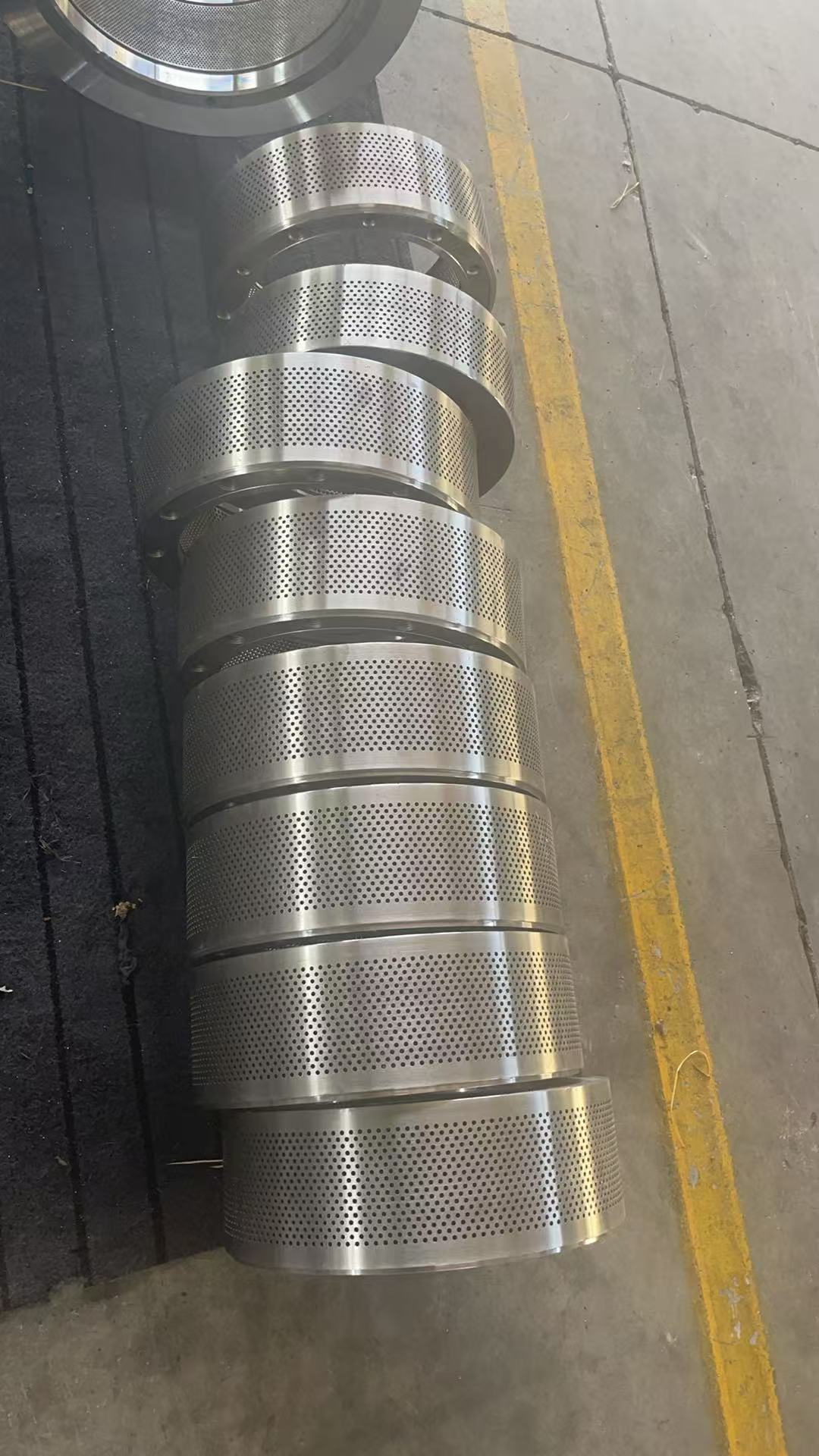

The China Approach to Ring-die Manufacturing--Ring-die
[Brief Introduction]

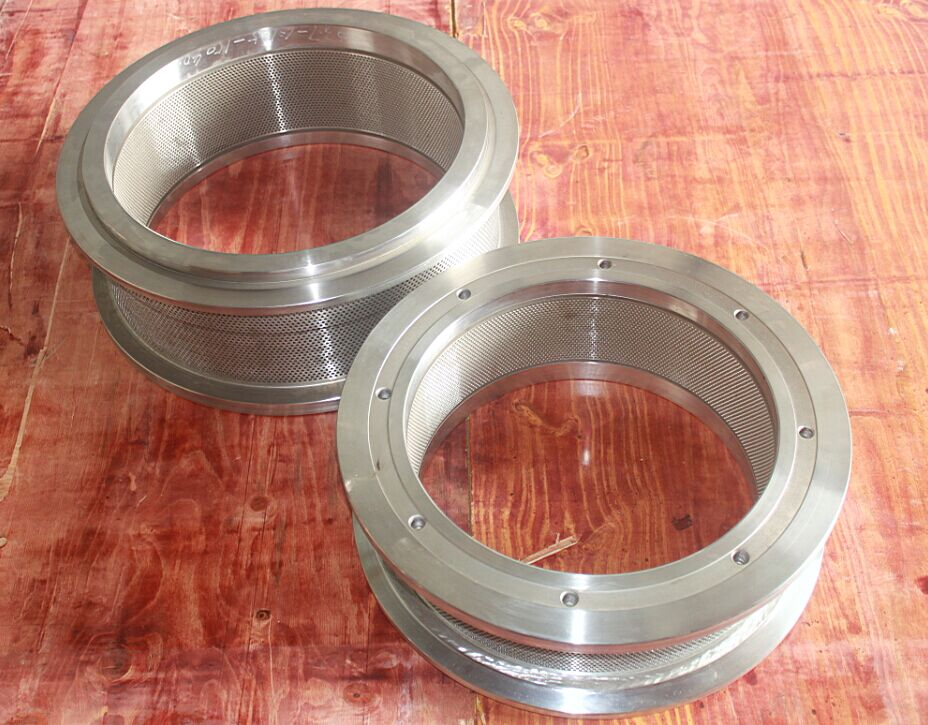

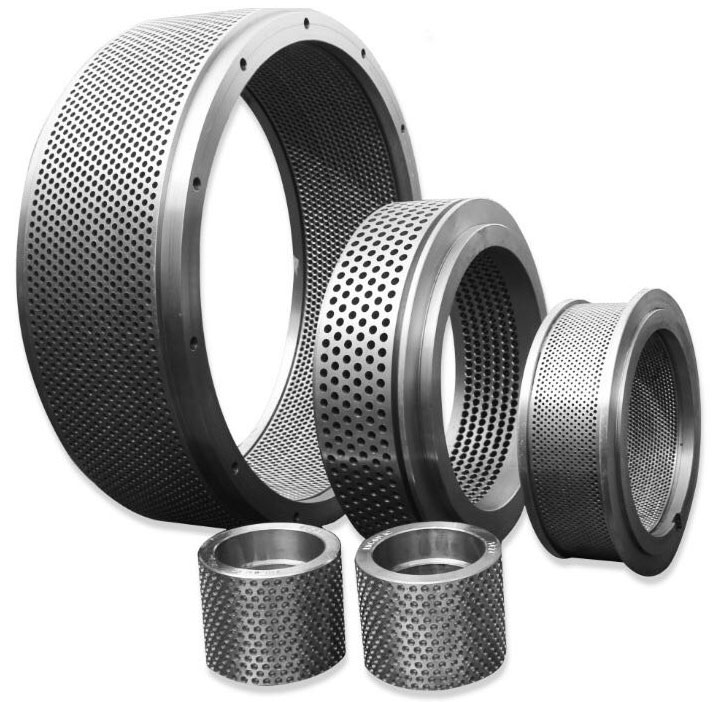

Ring-die is divided into two kinds according to the raw material type: one is Stainless Steel Ring-die [X46Cr13 / INOX (4Cr13)], the other is Alloy-Steel Ring-die [20CrNiMo (SAE-8620) or 20CrMnTi (20MnCr5)]；

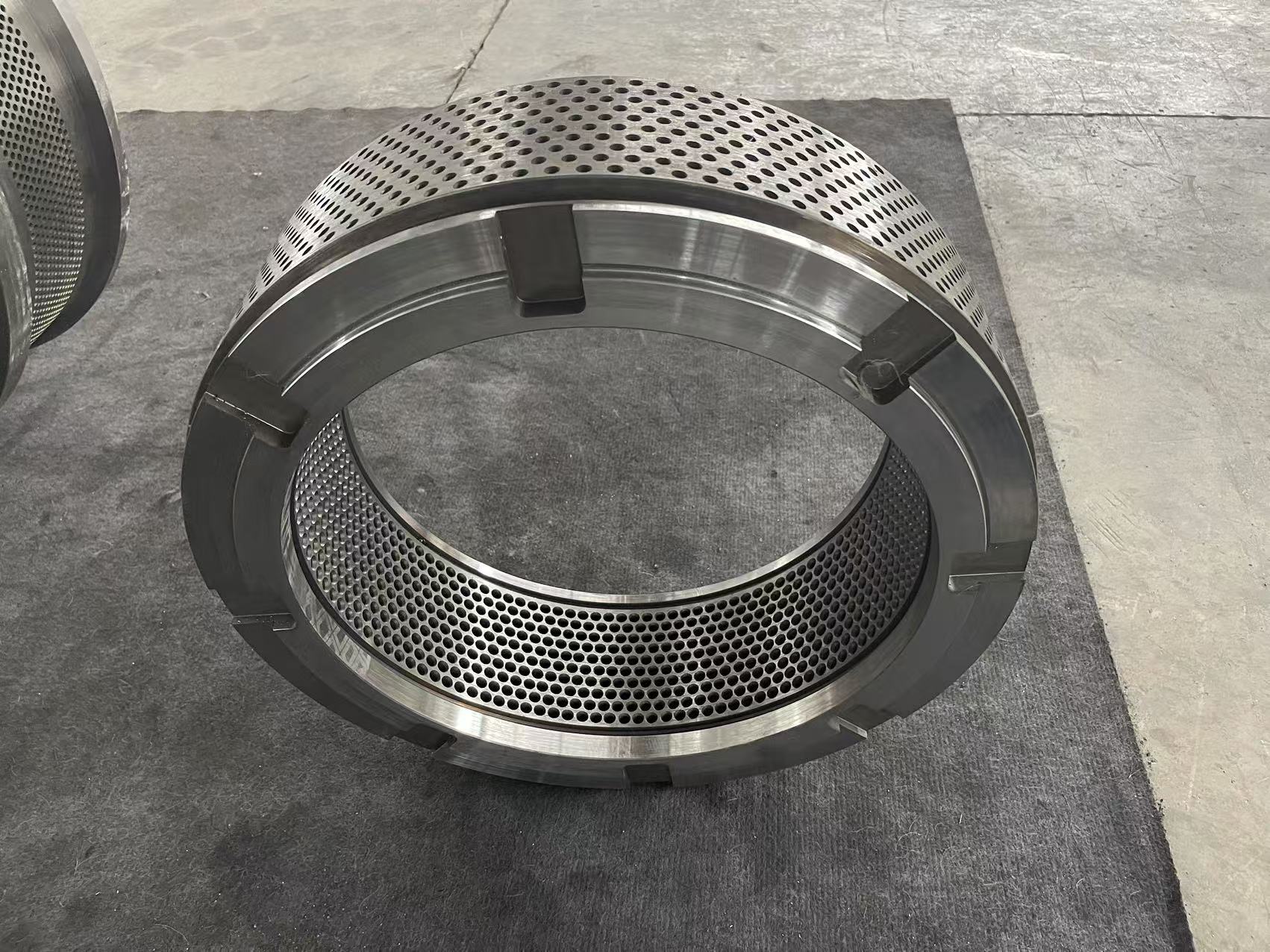

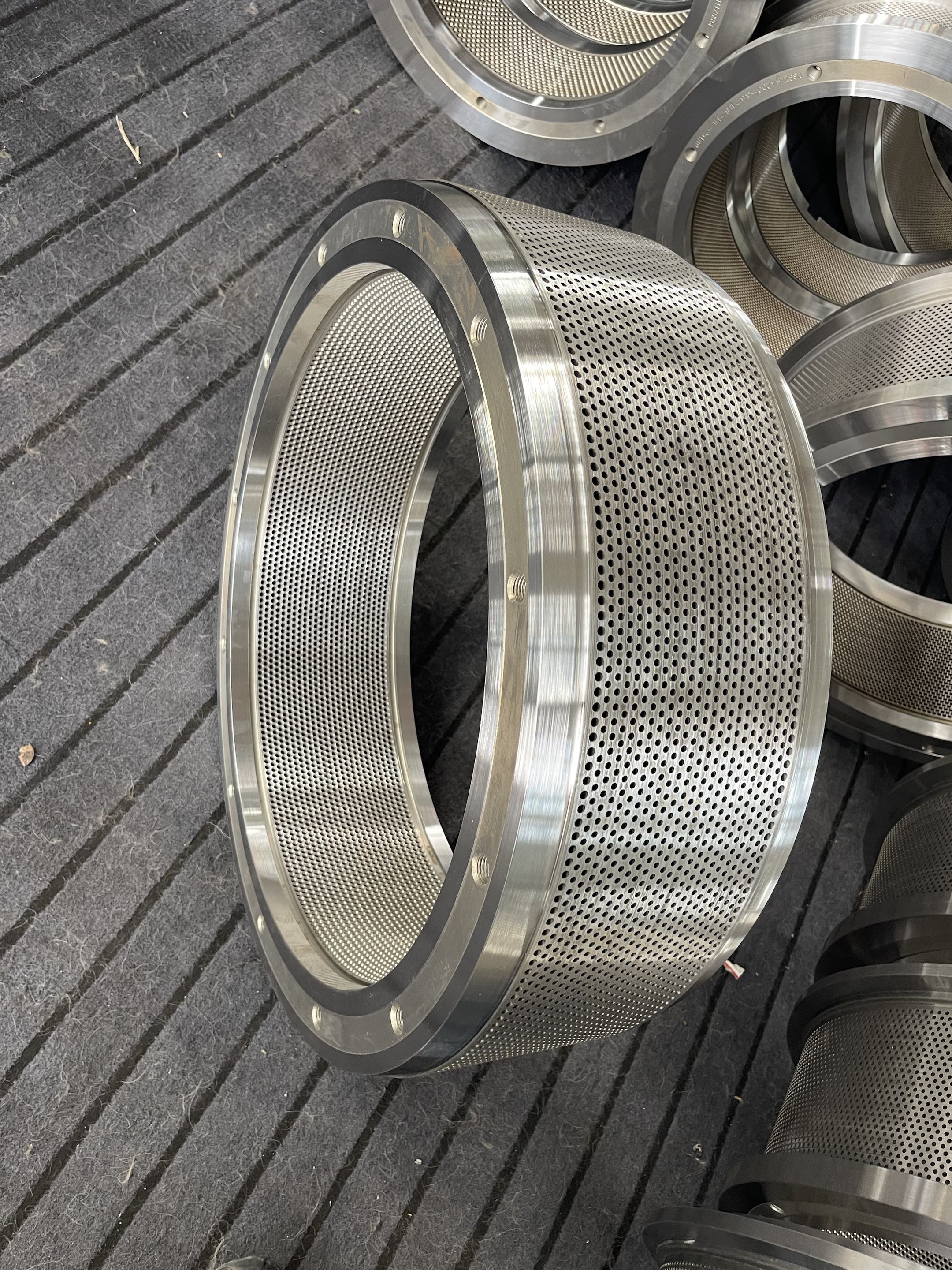

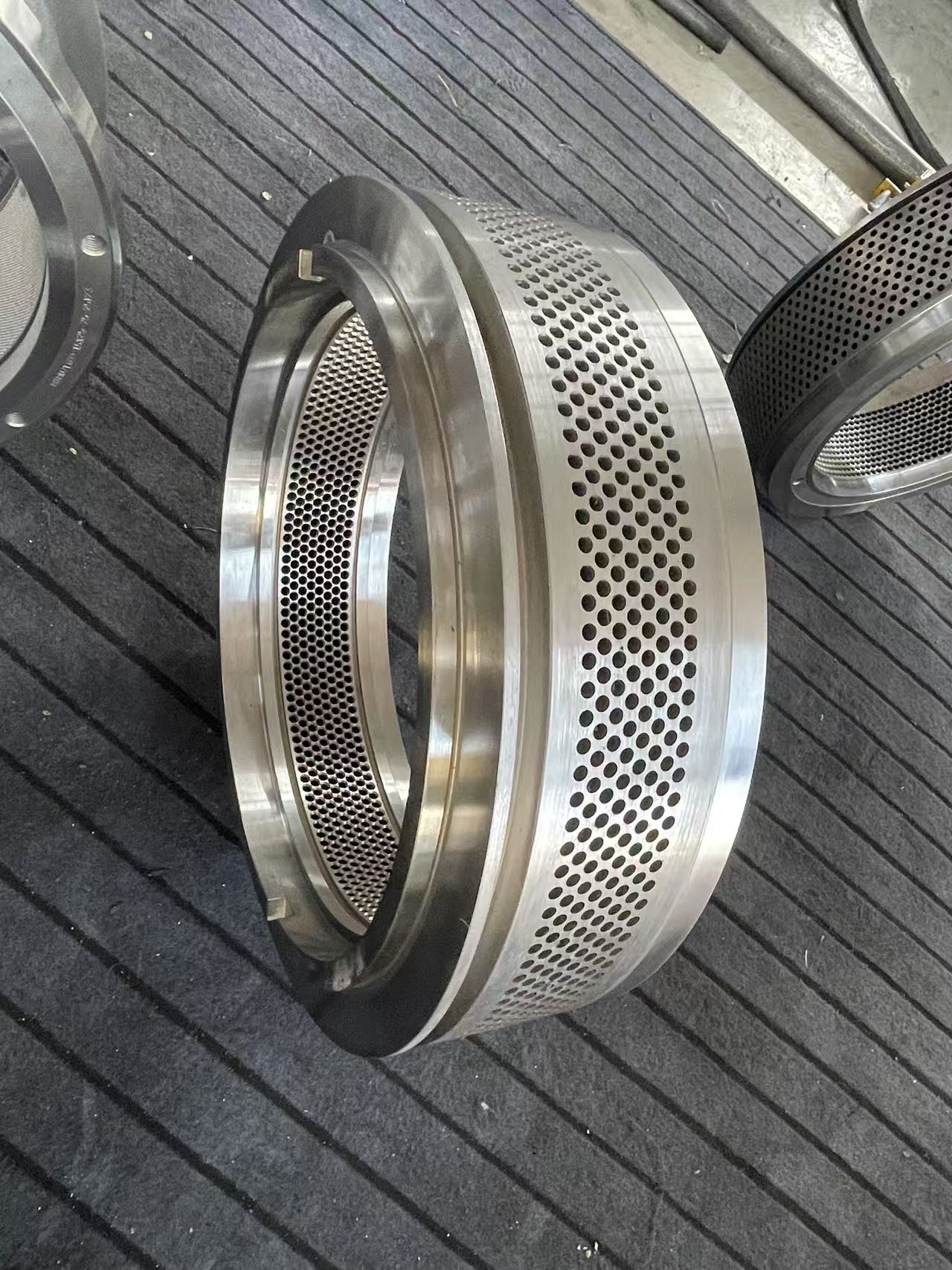

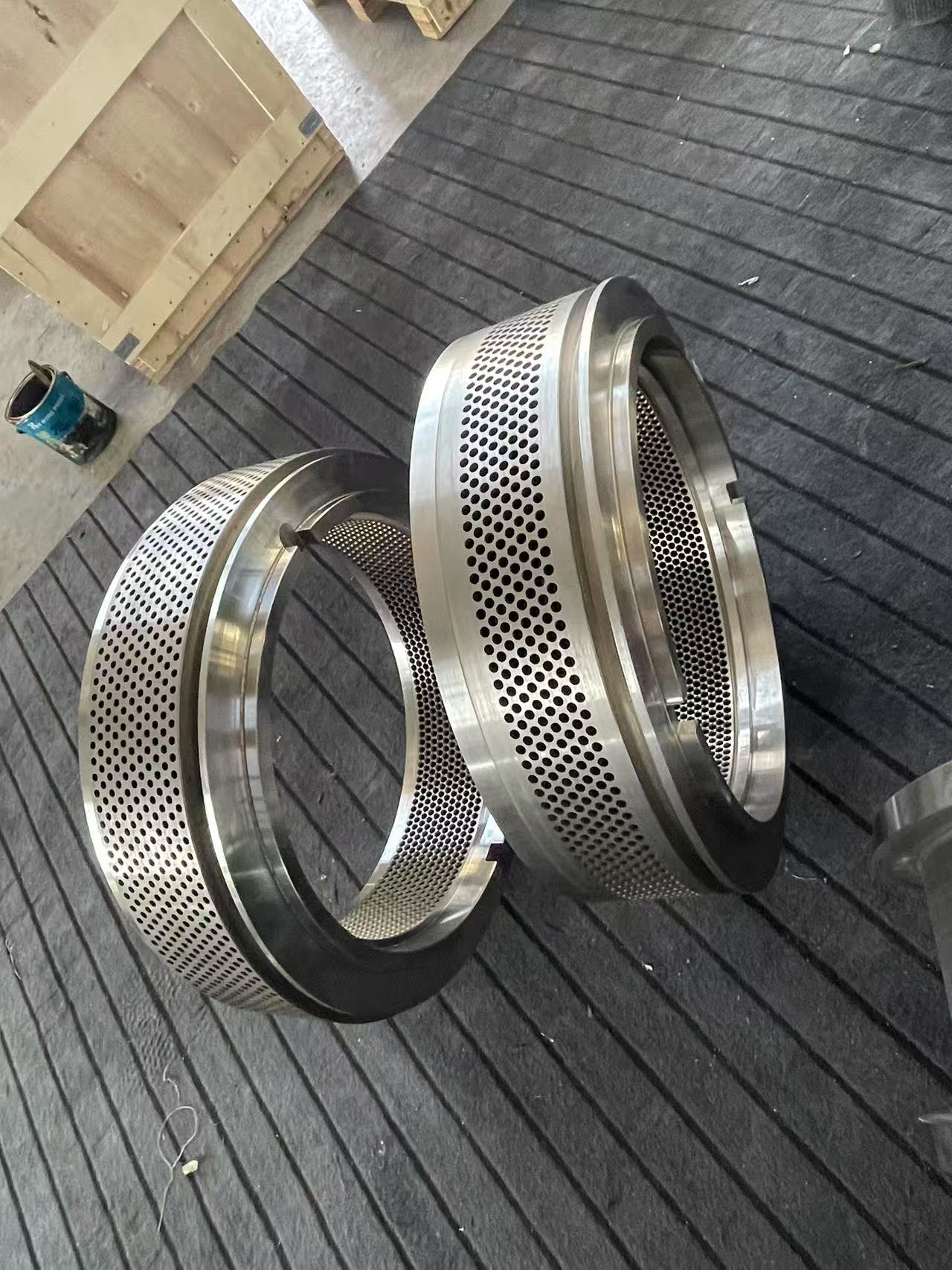

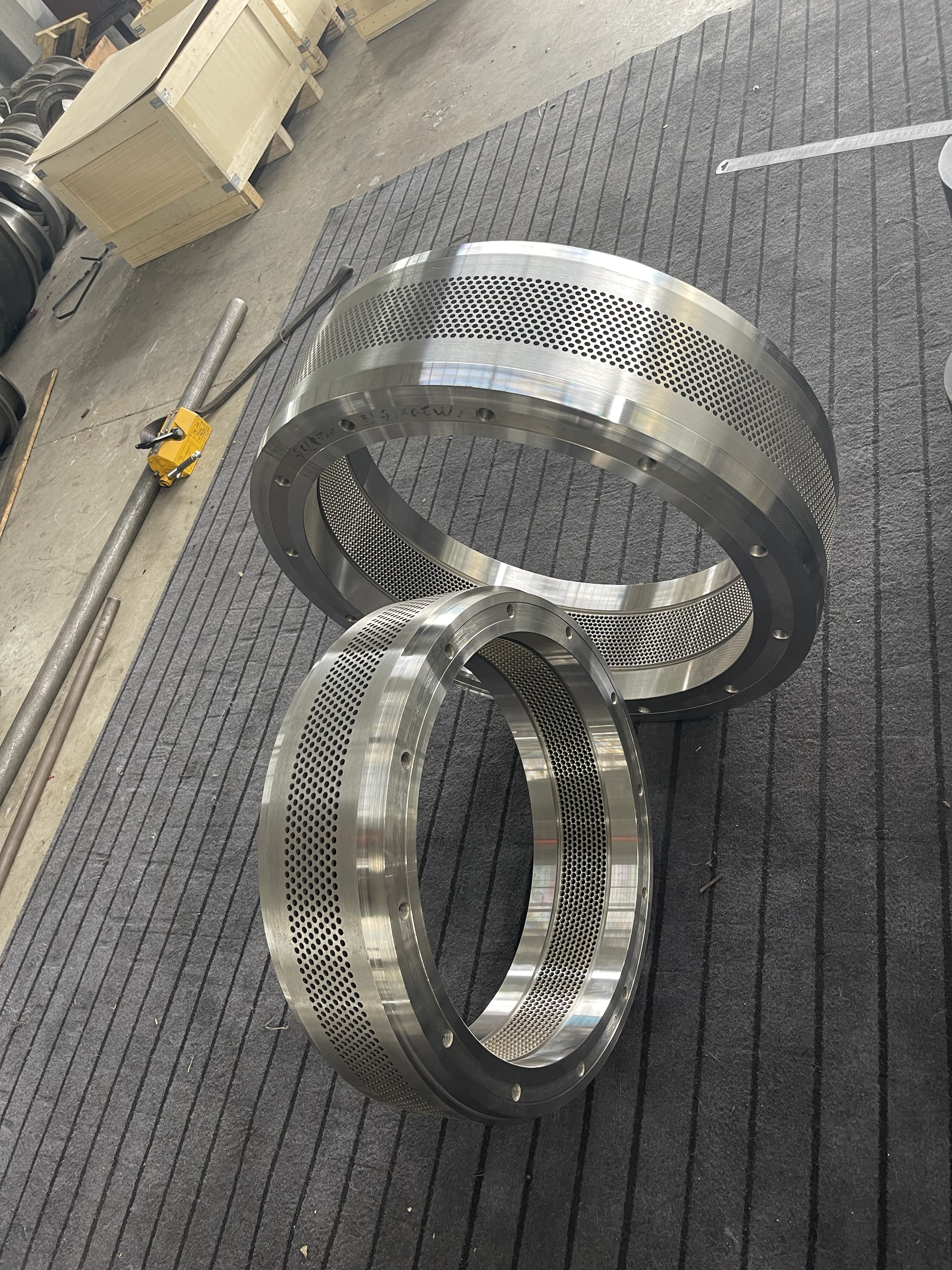

As per the fixing mode, it is divided into ring die with clamp fixture and ring die with bolts fixtures.
[Technical Specification]
Stainless Steel Ring-die: Material Type:X46Cr13 / INOX (4Cr13); Hardness: HRC55 -58 (For wood pellet mill); HRC52 -55 (For feed pellet mill); Heat treatment by Vacuum Furnace;
Alloy-Steel Ring-die: Material Type: 20CrNiMo(SAE-8620) or 20CrMnTi(20MnCr5); Hardness: HRC60 -62(For wood pellet mill); HRC58-60(For feed pellet mill); Heat treatment by pit-type cementation furnace (Cementation Depth: 1.0-1.5mm: 12-14 hours, Cementation Depth: 1.8-2.0mm: 24 hours);
[Chemical Specification]
DIN | Stoff nr | C% | Mn% | P% | S% | Si% | Ni% | Cr% | Mo% | Ti% |
X46Cr13 | 1.4034 | 0.42 - 0.50 | <1,000 | <0.040 | <0.030 | <1,000 | <1,000 | 12.5-14.5 | ||
SAE-8620 | 1.6523 | 0.18- 0.23 | 0.7- 0.9 | <0.04 | <0.04 | 0.2-0.35 | 0.4-0.7 | 0.4-0.6 | 0.15-0.25 | |
20CrMnTi | 0.17-0.23 | 0.8-1.1 | <0.035 | <0.035 | 0.17-0.37 | <0.30 | 1.0-1.3 | <0.25 | 0.04-0.10 |
Range of application: These ring- dies will be done strictly according to the customer’s drawing or requirement. They can be used as all kinds of feed pellet mill or wood pellet mill.
