2. Ring-die Manufacture from China Scheme-- CNC Vertical Lathe

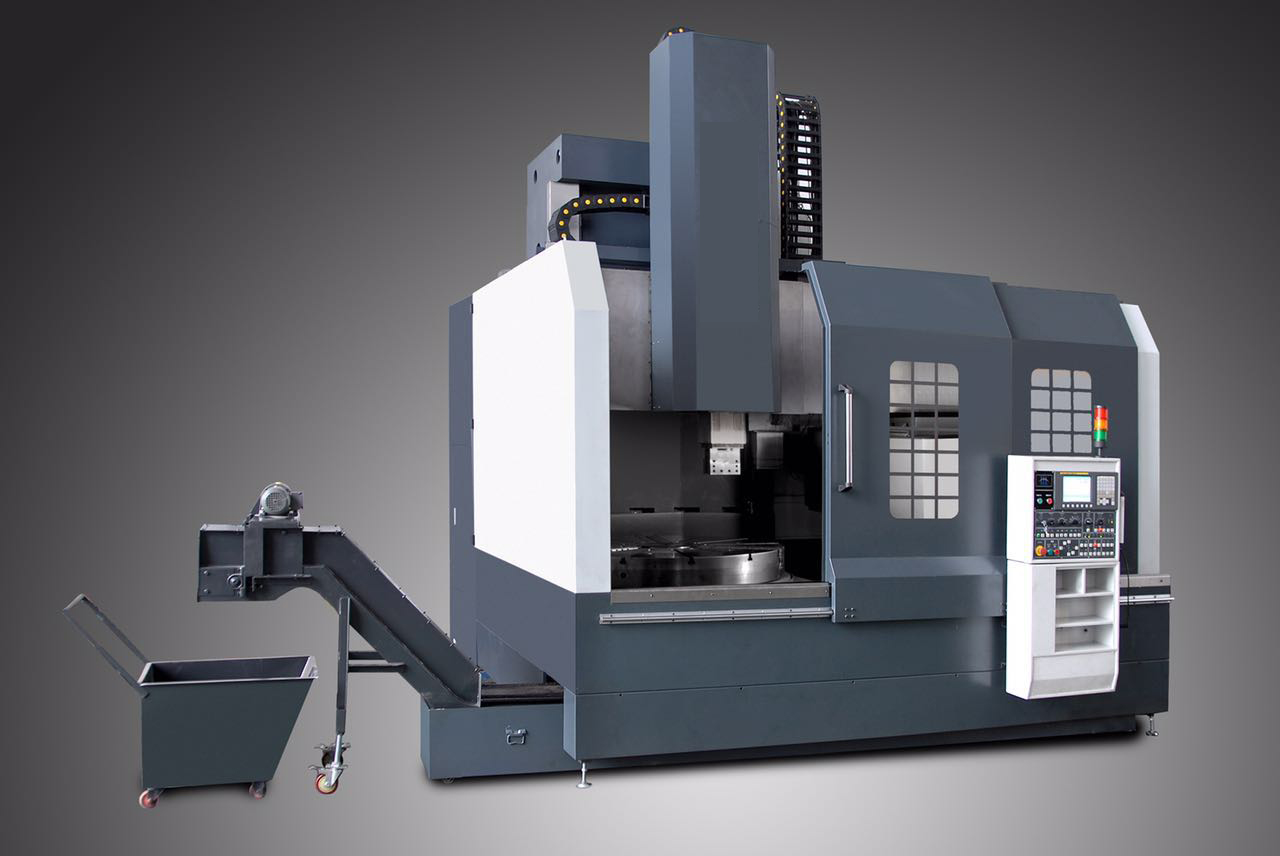

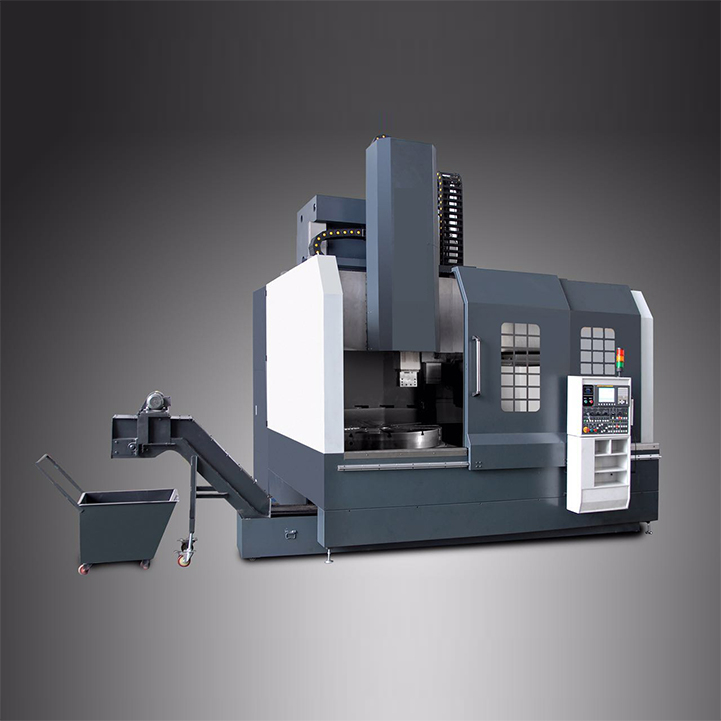

CNC Ring-Die Heavy Vertical Lathe (CK5112ATC/CK5116ATC) -- The most ideal , unique lathe for ring die machining ( Rough turning / Semi-turning / Finish Turning ), It can do the finish turning on the material with the hardness to HRC65(Precision Grade ±0.05mm) and the roughness to Ra1.1. the grinding lathe is unnecessary during ring-die process.
High precision、High Rigidity、Heavy Cutting、High Efficiency
■ The beam and base adopt the excellent resin bonded sand cast iron、thick rib plate and multi-layer body structure after normalization to ensure the equipment’s high rigidity and stability ；
■ The stand column and beam adopt wide MBI guideway with perfect loading capacity and shockproof function；
■ The beam adopts steel guideway and rolling & sliding composite structure with small friction resistance and long service life；
■ Ram adopts the perfect alloy-steel forgings with high density、high strength and abrasion resistance；
■ Great gear with precision grinding function together with ZF gearbox from Germany ensure the lathe output with big torque and high speed, 16 step mechanic gear shift or AC Variable frequency combined 4 step gear shift for the master drive’s option。

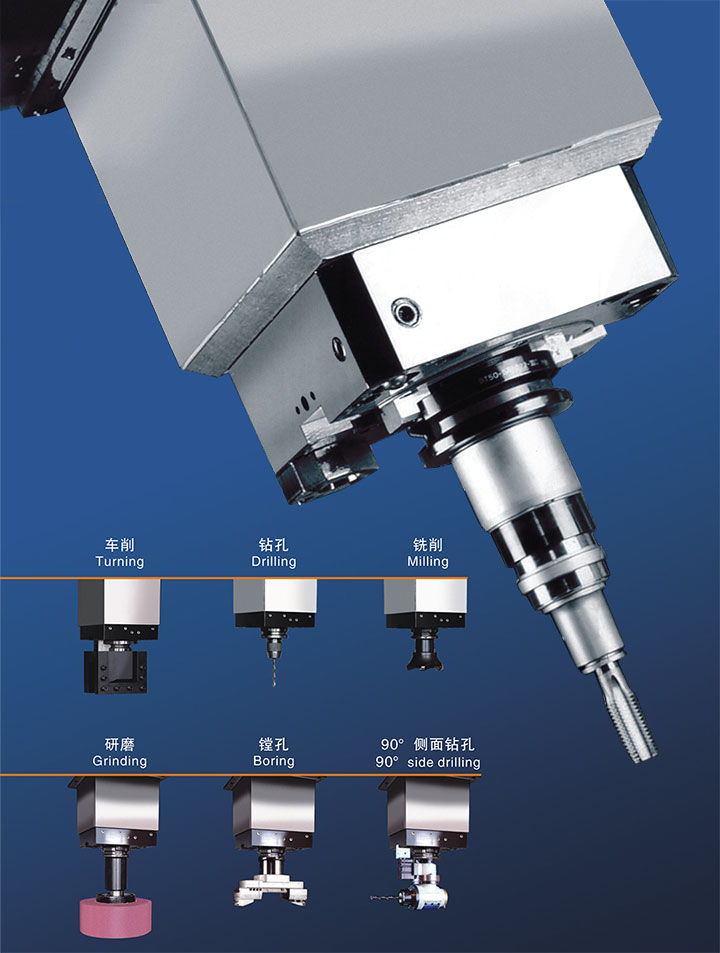

Excellent Composite Function
■ The second main shaft in BT50 Structure can directly install the standard BT50 drilling bits, milling bits and grinding wheel for the corresponding machining process；
■ The workbench with high precision indexing plate along CF axis and the self-centering hydraulic brake unit ensure this machine to run the composite function well.

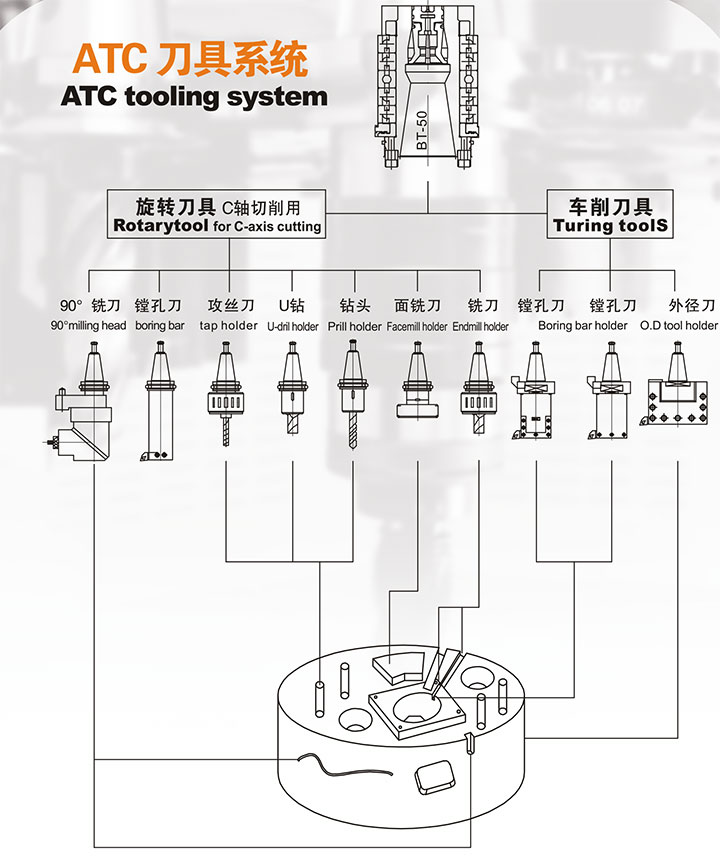

ATC Tooling System

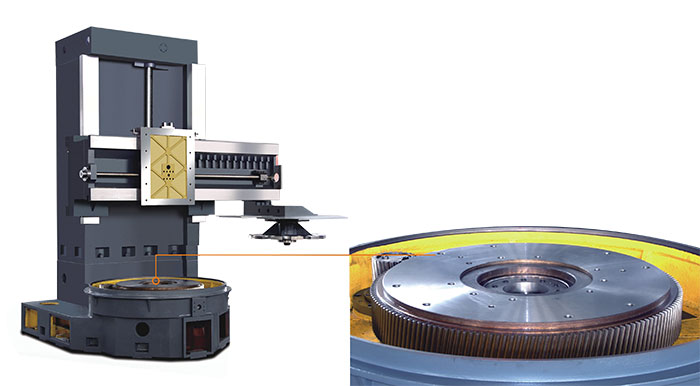

High Rigidity
Solid Base and Gearbox from Germany
Excellent Composite Function
Key Technical Parameters:
Model | CK5112 | CK5116 | CK5120 | ||
Max Cutting workpiece Diameter | 1250mm | 1600mm | 2000mm | ||
Workbench diameter | 1000mm | 1400mm | 1800mm | ||
Max workpiece height | 1000/1200/1400/1600mm | 1000/1200/1400/1600mm | 1250/1600/1800mm | ||
Max workpiece weight | 5 ton | 8 ton | 10 ton | ||
Max cutting force | 20kn | 25kn | 30kn | ||
Max cutting force of slant cutter frame | 20kn | 20kn | 20kn | ||
Total cutting force | 35kn | 40kn | 45kn | ||
Max torque of workbench | 17.5kn.m | 25kn.m | 32kn.m | ||
Circular speed range of workbench | 6.3-200 r/min | 5-160 r/min | 3.2-100 r/min | ||
Max slant degree of vertical cutter frame | ±30°。 | ±30°。 | ±30°。 | ||
Feeding grade of of vertical cutter frame | stepless | stepless | stepless | ||
Feeding range of of vertical cutter frame | 0.1-500 mm/min | 0.1-500 mm/min | 0.1-500 mm/min | ||
Feeding range of of slant cutter frame | 0.25-90 mm/min | 0.25-90 mm/min | 0.25-90 mm/min | ||
Beam moving range | 650/850/1050/1250 mm | 650/850/1050/1250mm | 900/1250/1750mm | ||
Beam moving speed | 440 mm/min | 440 mm/min | 440 mm/min | ||
Vertical travel of vertical cutter frame | 650/800 mm | 800/1000/1100 mm | 800/1000/1100 mm | ||
Horizontal travel of vertical cutter frame | 750 mm | 950 mm | 1200 mm | ||
Moving speed of vertical cutter frame | 3000 mm/min | 3000 mm/min | 1800 mm/min | ||
Vertical travel of slant cutter frame | 900 mm | 900 mm | 900 mm | ||
Horizontal travel of slant cutter frame | 630 mm | 630 mm | 630 mm | ||
Moving speed of slant cutter frame | 1800 mm/min | 1800 mm/min | 1800 mm/min | ||
Cutter bar cross section size ( W * H ) | 40*40 mm | 40*40 mm | 40*40 mm | ||
Main motor power | 22 Kw | 30 Kw | 37 Kw | ||
CNC System | FANUC / SIEMENS / GUANGSHU / HUAZHONG | ||||
Pendant Hand-held controllers | TOSOKU from Japan | ||||
Machine Size (L*W*H) (cm) | 240*247*350 Working Height:100 | 283*287*387 Working Height:100 | 321*405*420 Working Height:125 | ||
Machine Weight (ton) | 9 | 12 | 18 | ||
Remarks | 1. When the vertical cutter frame is chose as the slant ram,the vertical travel can’t be prolonged; 2. The first parameter is listed as the standard configuration if there are several parameters. | ||||
