6. Ring-die Manufacture from China Scheme
-- CNC Flange Drill & Keyway Milling Machine

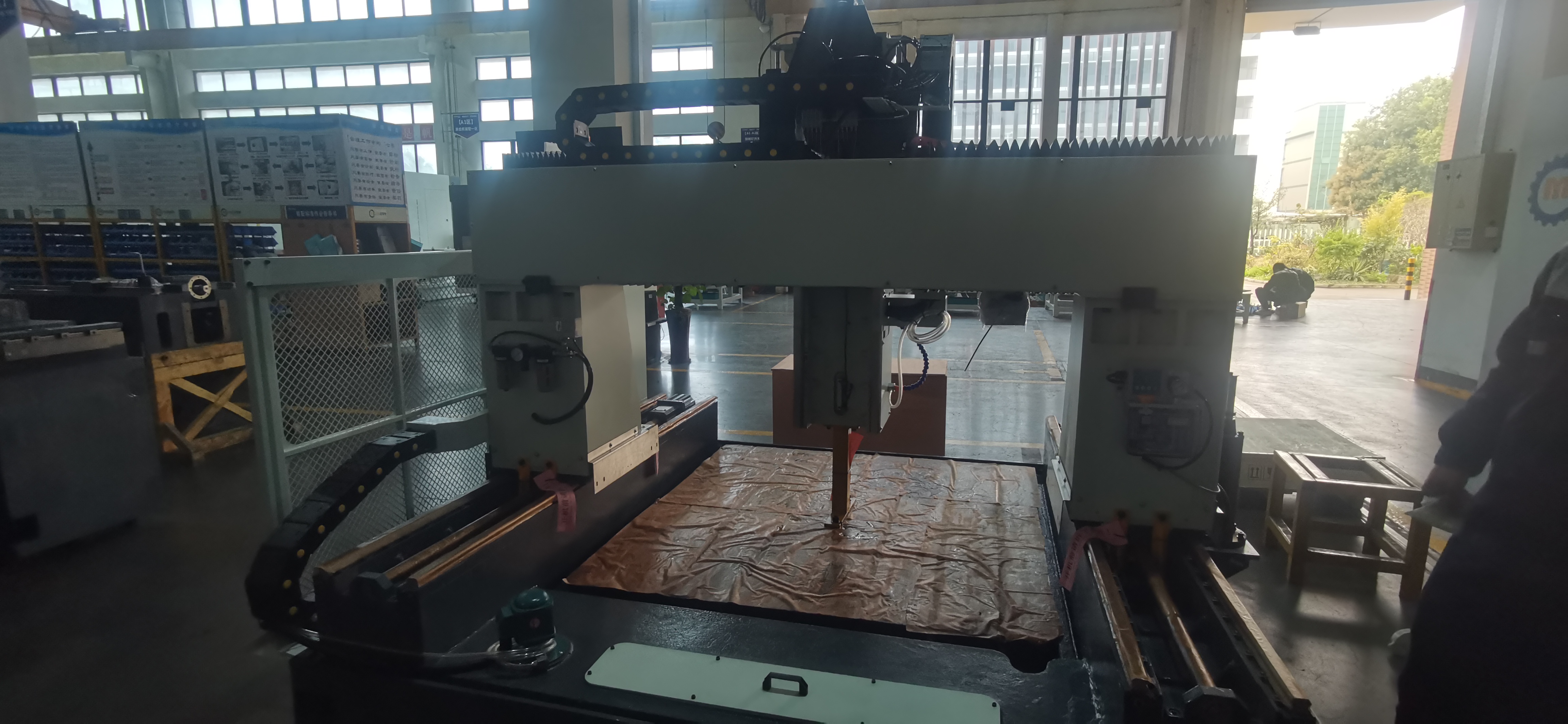

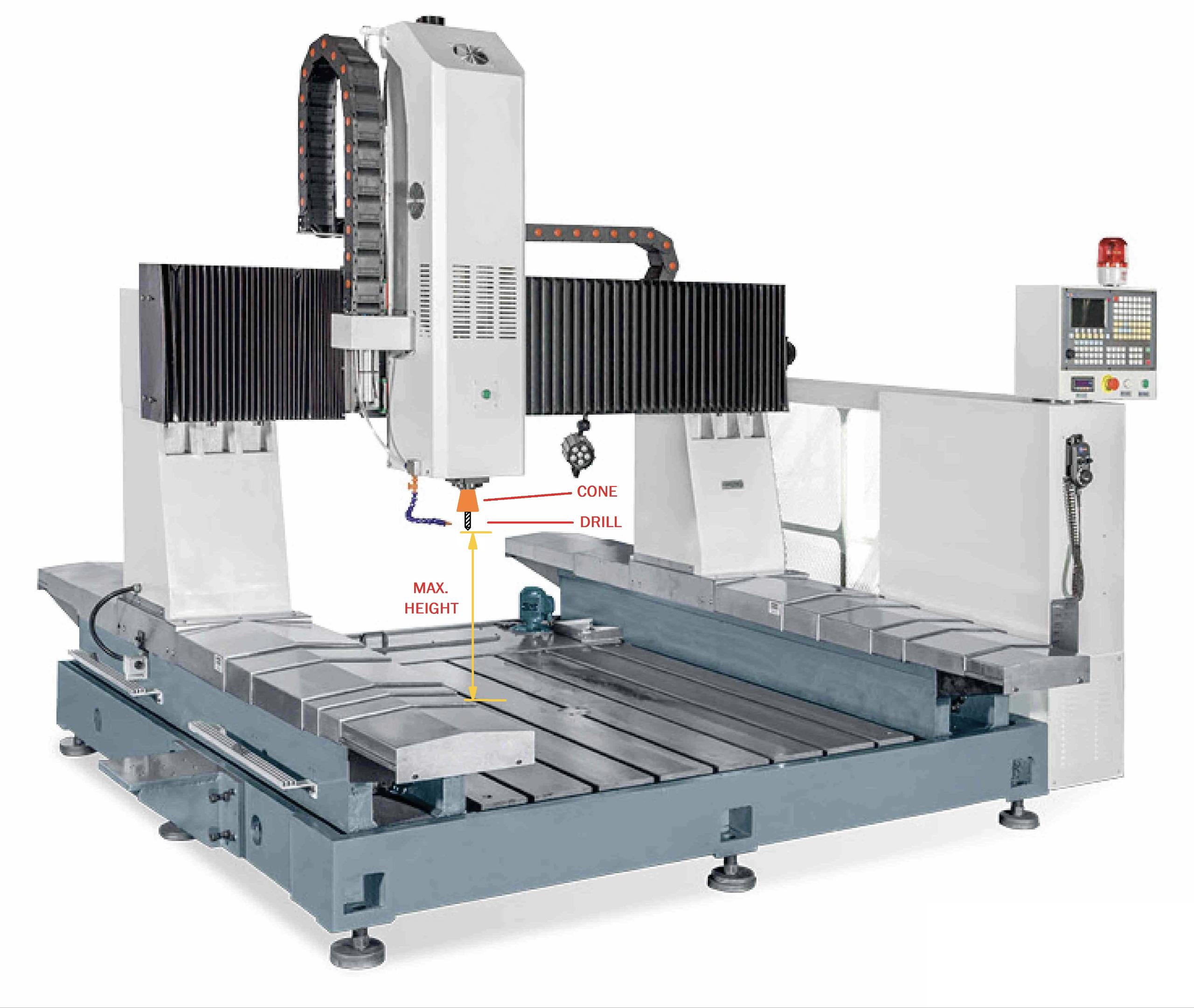

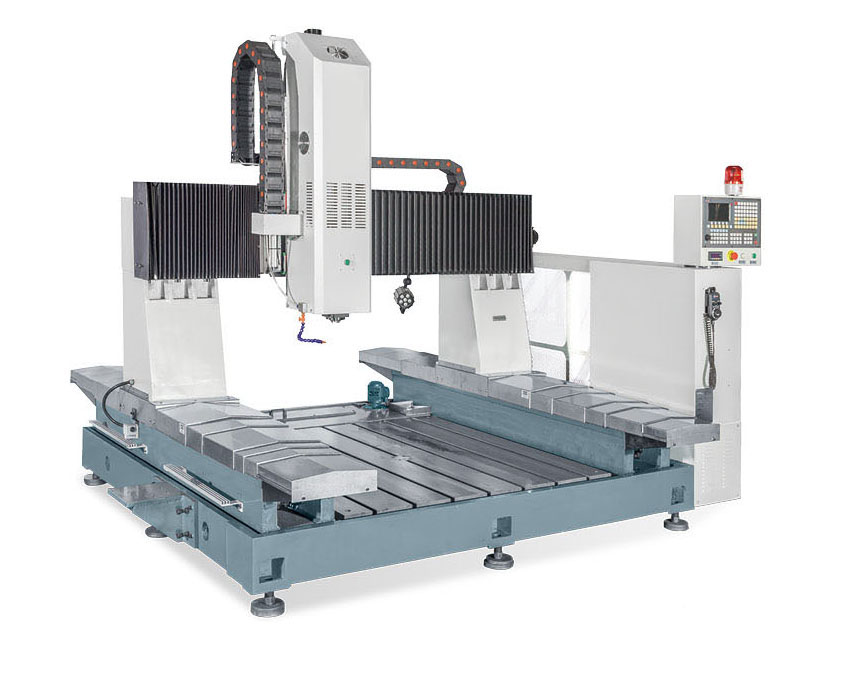

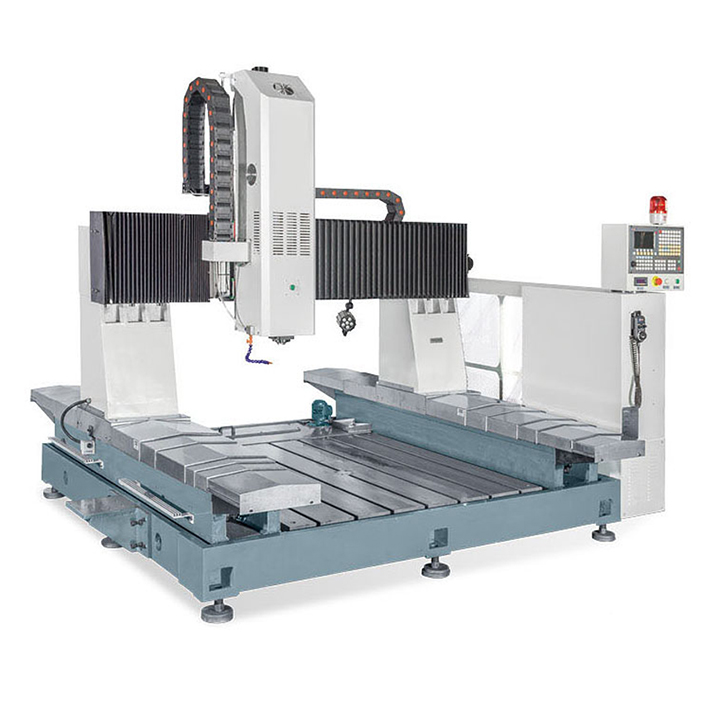

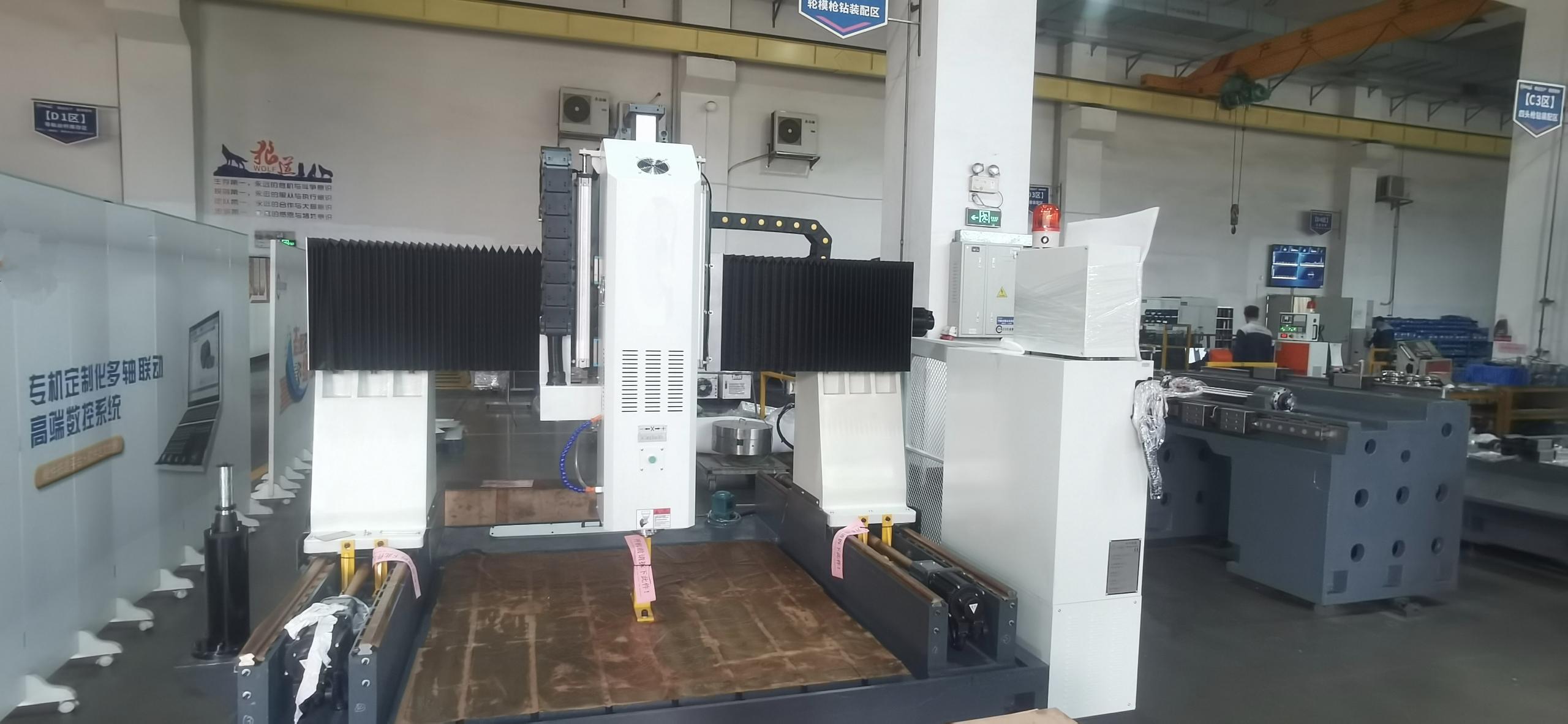

Item Name: CNC Flange Drill & Keyway Milling Machine for ring-die
Equipment’s Features & Function:
l Special design for the ring-die process, High quality & Economical use.
l Small body, large stroke and high rigidity.

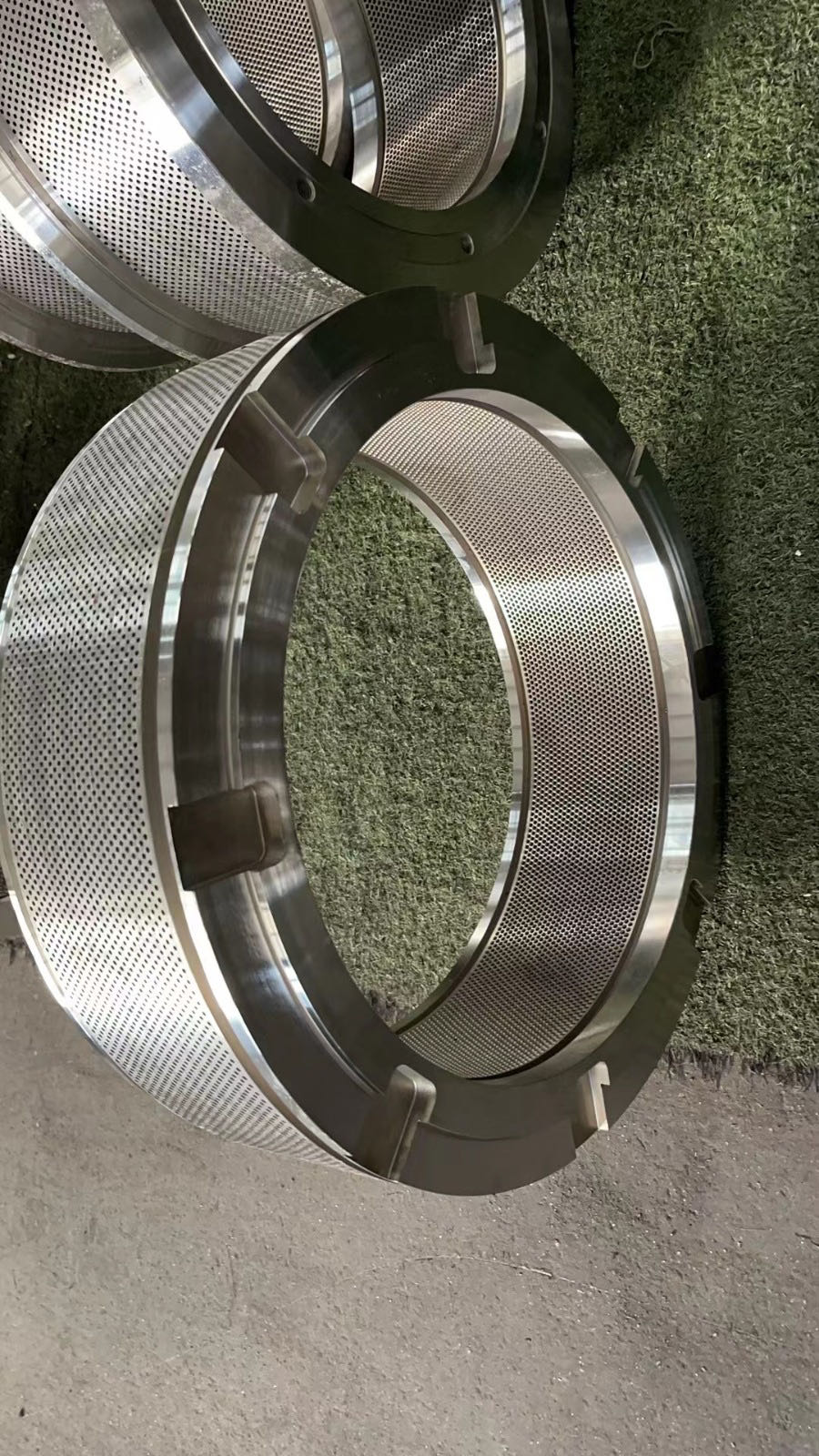

l The integrated machining for the flange hole and keyway on the ring die.
l Only input the ring-die diameter, installation / flange hole number , keyway width and groove depth, the process is automatically done by the machine.
l A key switch between drilling and milling process.
l Friendly man-machine interface can be only input the processing parameters.
l High-precision on milling slot and drilling, no need to draw lines operation on the ring die.
l Full-automatic drilling and milling the groove, the batch processing can be executed on this machine.
l Worktable with the overall casting, increasing machine load capacity.
l BT30 spindle with pneumatic cutting function & high precision, the cutting tool can be easily and swiftly changed.
l Professional customized CNC system to ensure the machining reliability and Stability.
l With long Z-axis travel, Most ring dies with various thickness can be processed.
Control Axis QTY | 3 | Spindle Travel Range ( X × Y) | 1500 × 1500 mm |
Workbench Space (L × W) | 1500 × 1500 mm | Axis Z travel Range | 550mm |
Spindle Specification | BT30 | Spindle Speed | 0-3000rpm |
Scope of drilling | Φ30 | Tool Change Mode | Pneumatic cutting |
The clamping way | Customized JIG | Main-Axis Power | 3.7KW |
Machine Weight | 4680KG | Dimension (L×W × H) | 3130 × 2850 ×2300 mm |
Key Technical Parameters:
